Name: Trek Marlin 5 Gen 3 Mountain Bike - 2026
Brand: Trek
SKU: 30409
Price: 625.00 GBP
Availability: InStock

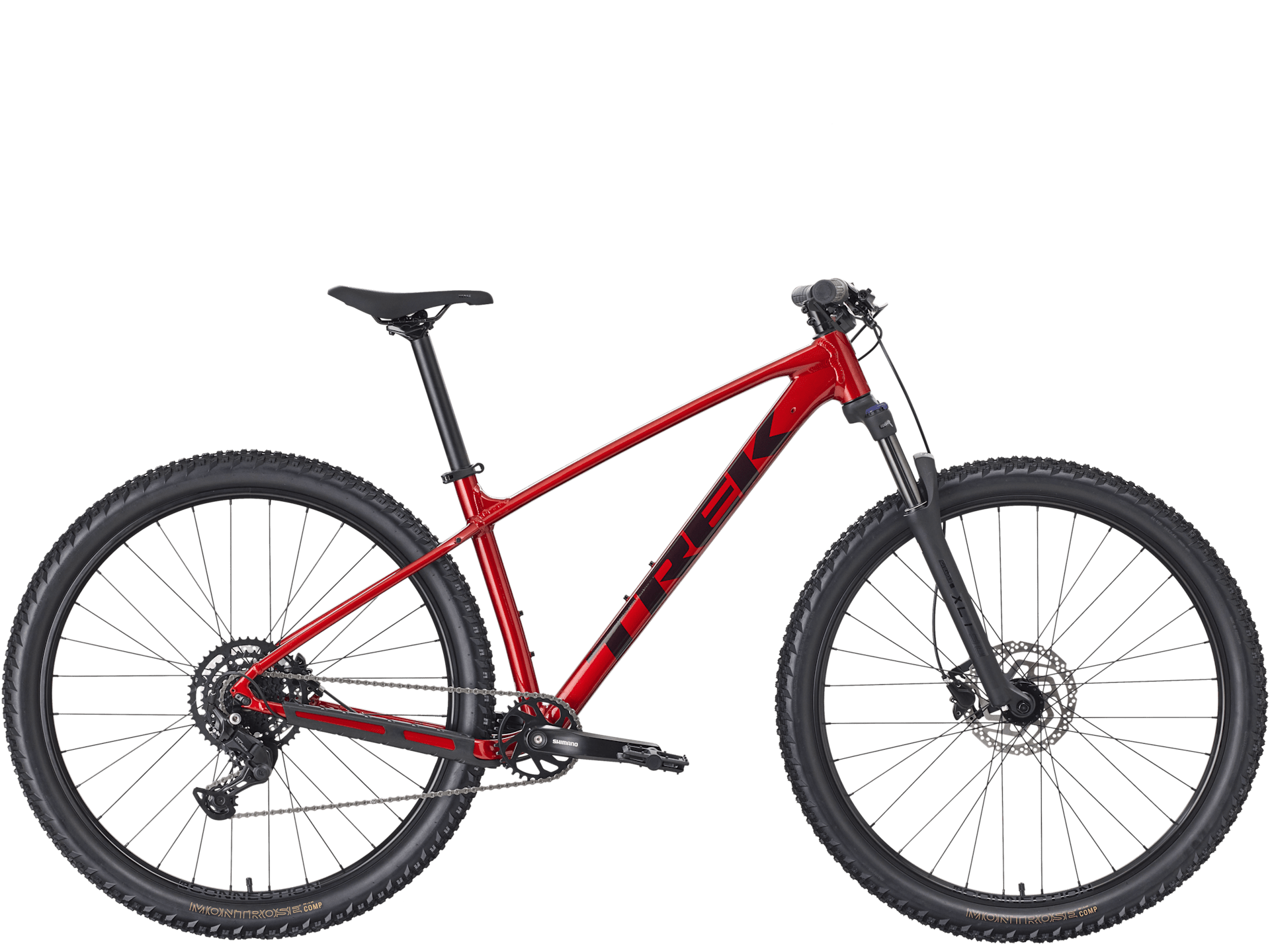

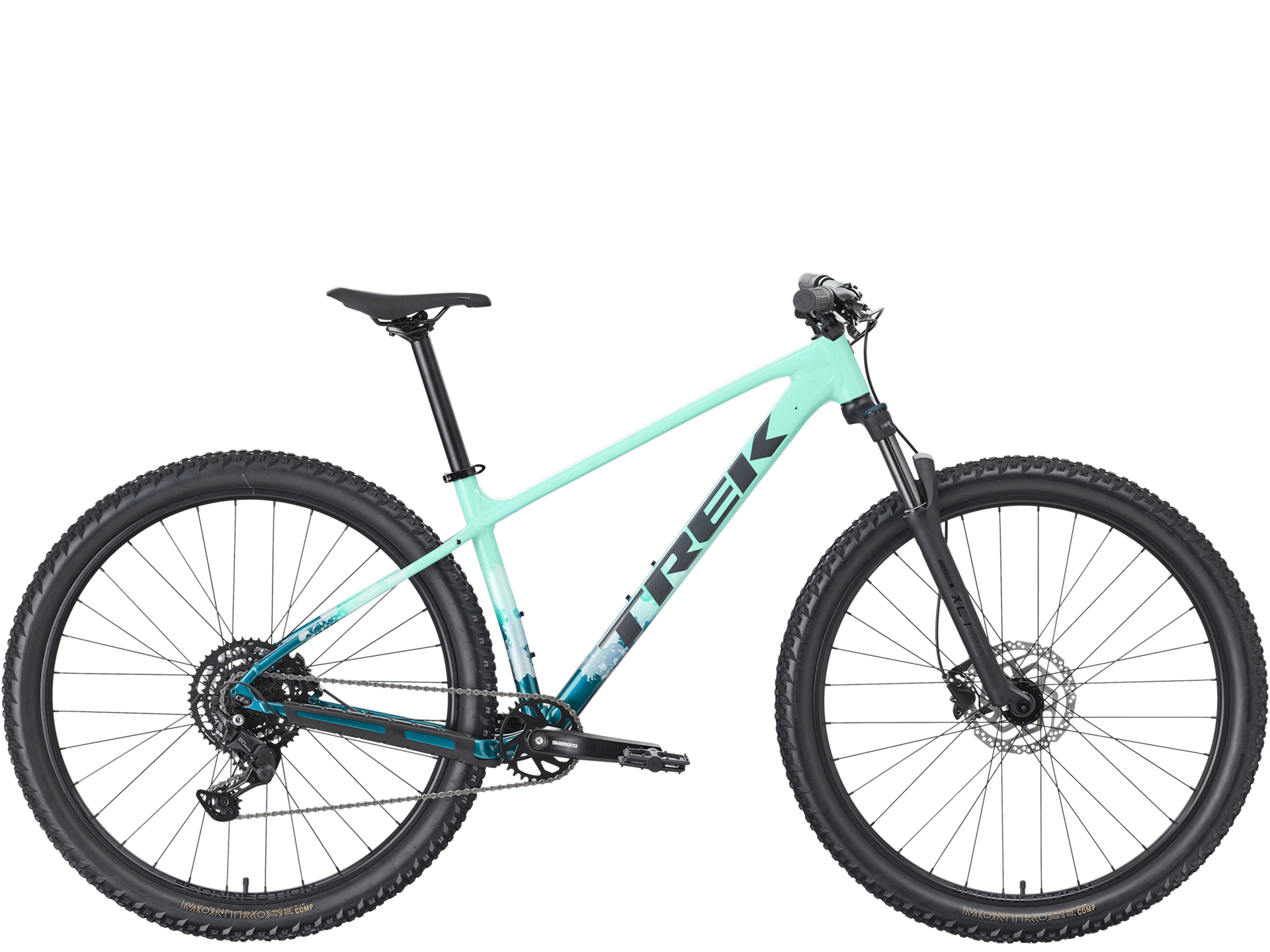

Trek Marlin 5 Gen 3 Mountain Bike – 2026

£625.00

Trek Marlin 5 is a trail-worthy daily rider that’s perfectly suited for everyday adventures, on and off the trail. It features a trail-savvy frame with a suspension fork, 9-speed Shimano CUES shifting and mounts for a rack and kickstand that make it an ideal choice for trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.

Size or colour not shown?
Drop us a message

Frame	Size: XS Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135×5 mm ThruSkew Size: S , M , ML , L , XL , XXL Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135×5 mm ThruSkew
Fork	Size: XS SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5″ wheel, 100 mm QR, 80 mm travel Size: S SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5″ wheel, 100 mm QR, 100 mm travel Size: M , ML , L , XL , XXL SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 29″ wheel, 100 mm QR, 100 mm travel
Hub front	Formula DC-20, alloy, 6-bolt, 5×100 mm QR
Hub rear	Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135×5 mm QR
Skewer rear	Size: XS , S , M , ML , L , XL , XXL 173×5 mm QR Size: XS , S , M , ML , L , XL , XXL Trek Thru-Skew
Rim	Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
Spokes	14 g stainless steel, black
Tyre	Size: XS , S Bontrager Montrose Comp, wire bead, 30 tpi, 27.5×2.40″ Size: M , ML , L , XL , XXL Bontrager Montrose Comp, wire bead, 30 tpi, 29×2.40″
Shifter	Shimano U4000, 9-speed
Rear derailleur	Shimano CUES U4000
Crank	Size: XS , S , M , ML Shimano CUES U4001, 32T, 52mm chain line, 170 mm length Size: L , XL , XXL Shimano CUES U4001, 32T, 52mm chain line, 175mm length

Bottom bracket	Shimano, 73 mm, threaded cartridge, 122.5 mm spindle
Cassette	Shimano LINKGLIDE LG300, 11-46, 9-speed
Chain	Shimano LG500
Pedal	VP-536 nylon platform
Saddle	Bontrager Verse Short, stainless steel rails
Seatpost	Size: XS , S , M Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length Size: ML , L , XL , XXL Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length
Handlebar	Size: XS Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width Size: S Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width Size: M , ML , L , XL , XXL Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips	Trek Line Comp, nylon lock-on
Stem	Size: XS , S Bontrager Comp, 31.8 mm, 7-degree, 35 mm length Size: M , ML , L Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length Size: XL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length Size: XXL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length
Headset	Semi-integrated, 1-1/8″
Brake	Shimano MT200 hydraulic disc
Brake rotor	Size: XS , S , M , ML , L , XL , XXL Shimano RT26, 6-bolt, 160 mm Size: M , ML , L , XL , XXL Shimano RT26, 6-bolt, 180 mm
Brake Set	Shimano MT200 hydraulic disc
