| Frame | Alpha Gold Aluminium, tapered head tube, internal derailleur & dropper post routing, ISCG 05, threaded BB, Boost148, 12 mm thru axle |
|---|---|
| Fork | Size: XS RockShox Recon Silver RL, SoloAir spring, Motion Control damper, lockout, tapered steerer, 37 mm offset, Boost110, Maxle Stealth, 140 mm travel Size: S, M, M/L, L, XL RockShox Recon Silver RL, SoloAir spring, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, Maxle Stealth, 140 mm travel |
| Max compatible fork travel | 150mm |
| Front hub | Shimano MT400, CenterLock, Boost110, 15 mm thru-axle |

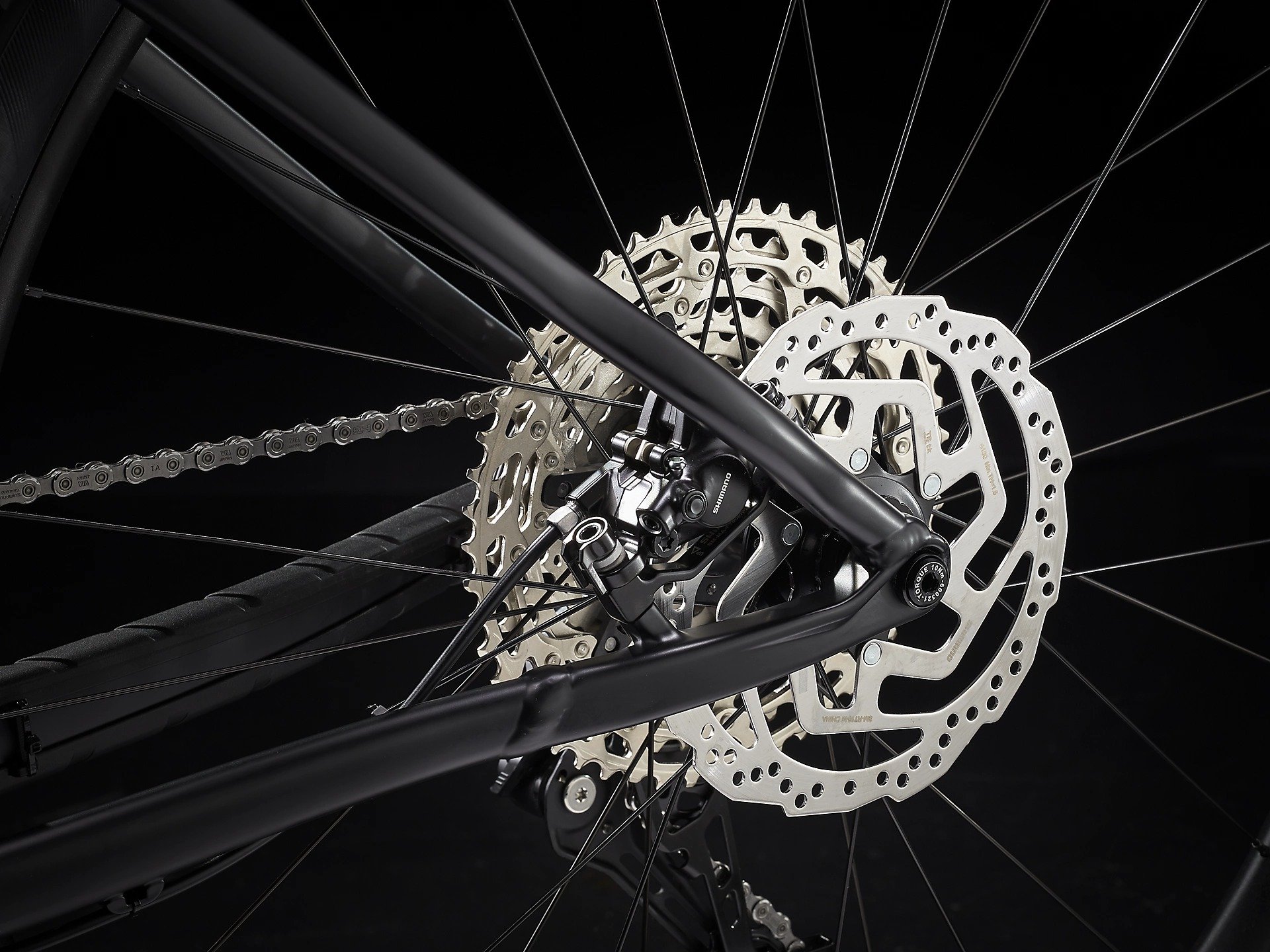

| Rear hub | Shimano MT510, CenterLock, Boost148, 12 mm thru-axle |
| Skewer rear | Bontrager Switch thru-axle, removable lever |
| Rim | Bontrager Line Comp 30, Tubeless Ready, 28-hole, Presta valve |
| Spokes | 14 g stainless steel, black |
| Tyre | Size: XS Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 27.5×2.60″ Size: S, M, M/L, L, XL Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29×2.60″ |
| Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim strip | Bontrager TLR |
| Max tyre size | Frame: 29×2.60″ (XS – 27.5×2.60″) Fork: see manufacturer |
| Shifter | Shimano Deore M6100, 12-speed |
| Rear derailleur | Shimano Deore M6100, long cage |
| Crank | Size: XS, S, M, M/L, L Shimano MT511, 30T steel ring, 52 mm chainline, 170 mm length Size: XL Shimano MT511, 30T steel ring, 52 mm chainline, 175 mm length |
|---|---|
| Bottom bracket | Shimano SM-BB52, 73 mm, threaded external bearing |
| Cassette | Shimano Deore M6100, 10-51, 12-speed |
| Chain | Shimano Deore M6100, 12-speed |
| Pedals | VP-536 nylon platform |
| Max chainring size | 52mm chainline: 32T, 55mm chainline: 34T |

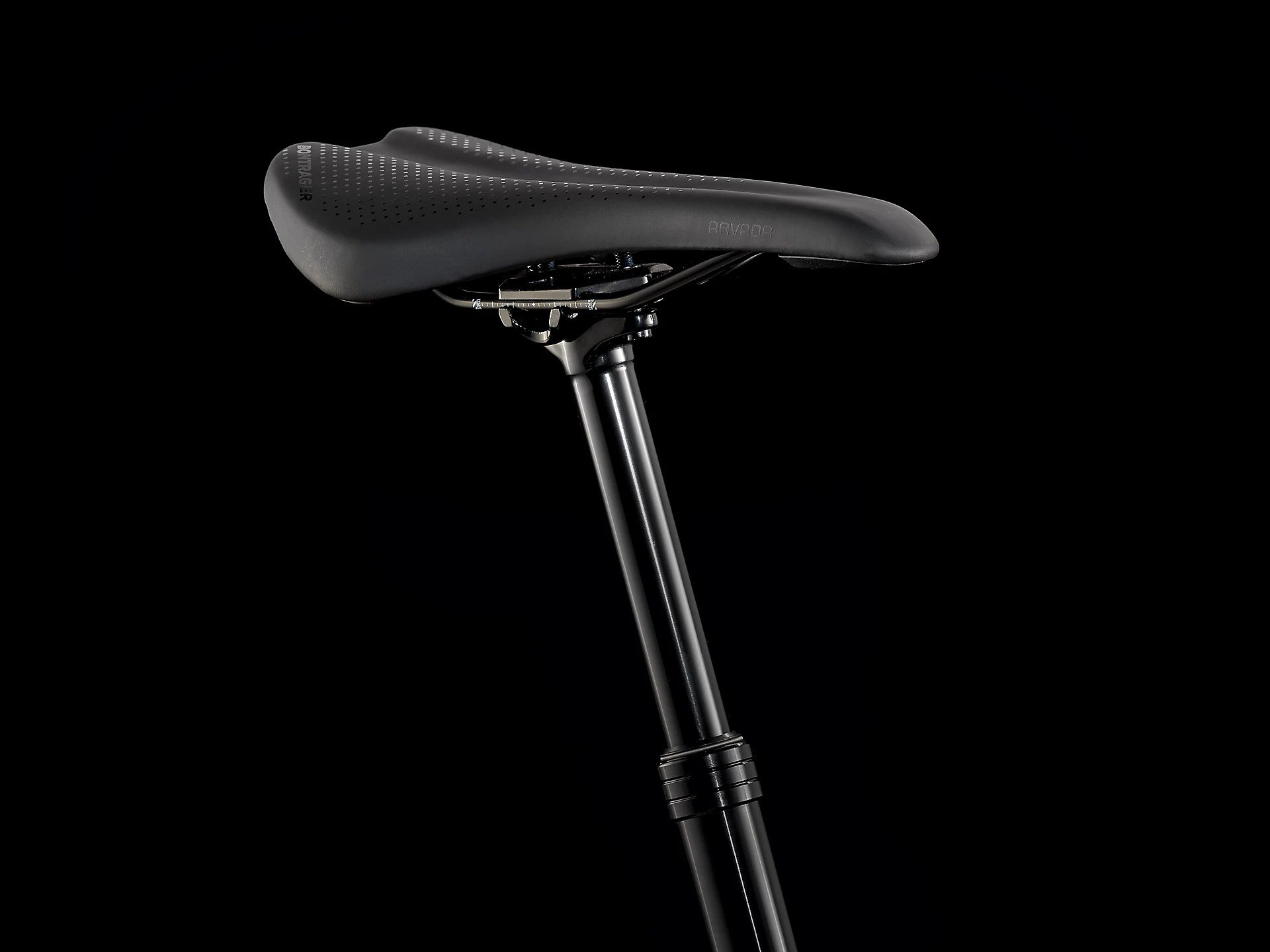

| Saddle | Bontrager Arvada, steel rails, 138 mm width |
| Seatpost | Size: XS, S TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length Size: M TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length Size: M/L, L, XL TranzX JD-YSP18, 150 mm travel, internal routing, 31.6 mm, 470 mm length |
| Handlebars | Size: XS, S Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width Size: M, M/L, L, XL Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 780mm width |
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| Stem | Size: XS, S Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 35 mm length Size: M, M/L, L, XL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length |
| Headset | FSA IS-2, 1-1/8″ top, 1.5″ bottom |
| Brakes | Shimano MT200 hydraulic disc |
| Brake rotor | Shimano RT10, CenterLock, 180 mm |
Good to know: manufacturers sometimes change specs, components, colours and graphics during a model year, so what you receive may differ slightly from the photos. If a detail matters to you, ask us before you buy and we'll check it for you.
