| Hub front | Shimano TC500 alloy, CentreLock, 110×15 mm thru axle |
|---|---|
| Hub rear | Shimano TC500 alloy, CentreLock, 148×12 mm thru axle |
| Rim | Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve |
| Tyre | Size: S, M, ML, L, XL Bontrager Sainte-Anne Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29×2.40″ Size: S, M, ML, L, XL Bontrager Sainte-Anne Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29×2.20″ |
| Max tyre size | Frame: 29×2.40″, Fork: See manufacturer |
| Shifter | Shimano Deore M6100, 12-speed |
| Rear derailleur | Shimano Deore M6100, long cage |
| Crank | Size: S, M, ML Shimano MT512, 32T, 55 mm chain line, 170 mm Size: L, XL Shimano MT512, 32T, 55 mm chain line, 175 mm |
| Bottom bracket | Shimano MT500, 92 mm, PressFit |

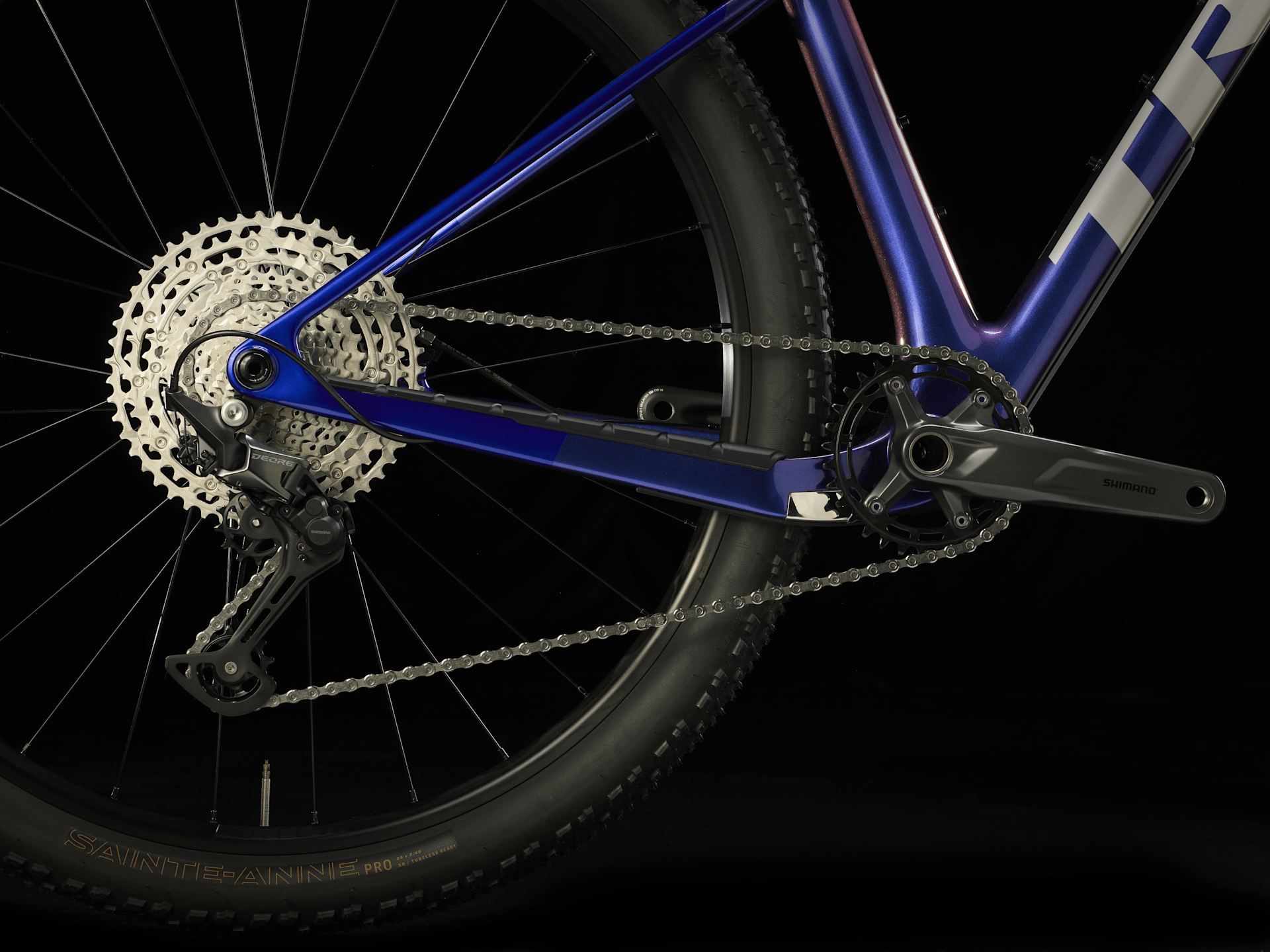

| Cassette | Shimano Deore M6100, 10-51, 12-speed |
| Chain | Shimano Deore M6100, 12-speed |
| Max. chainring size | 1x: 38T |
| Saddle | Verse Short, chromoly rails, 145 mm width |
| Seatpost | Size: S Bontrager Line Dropper, 100 mm travel, MaxFlow, internal routing, 31.6 mm, 310 mm length Size: M, ML, L Bontrager Line Dropper, 150 mm travel, MaxFlow, internal routing, 31.6 mm, 410 mm length Size: XL Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 31.6 mm, 450 mm length |
|---|---|
| Handlebar | Size: S Bontrager Comp, alloy, 31.8 mm, 5 mm rise, 720 mm width Size: M, ML, L, XL Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750 mm width |
| Grips | Size: S, M, ML, L, XL Bontrager XR Trail Comp, nylon lock-on Size: S, M, ML, L, XL Trek Line Comp, nylon lock-on |
| Stem | Size: S Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length Size: M, ML Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length Size: L Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length Size: XL Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length |
| Head set | FSA IS-2, 1-1/8″ top, 1.5″ bottom |
| Brake | Shimano MT200 hydraulic disc |
| Brake rotor | Size: S, M, ML, L, XL Shimano RT10, CenterLock, 160 mm Size: L, XL Shimano RT10, CenterLock, 180 mm |
| Rotor size | Max brake rotor sizes – Frame: 180 mm, Fork: see fork manufacturer |
Every effort has been made to ensure accuracy throughout this website. However, we reserve the right to change product specifications, features, prices and colours without prior notice.
