THE TOTAL RACE BIKE

ALL-NEW GIANT TCR RANGE

A ROAD REVOLUTION

The all-new TCR range is the result of a team effort involving Giant engineers and product developers, leading aerodynamics experts, and some of today’s top professional racers. Ever since it made its debut more than 20 years ago as a controversial race bike with compact geometry and a radical new look compared to all other race bikes of that era, the TCR has continually pushed the limits of performance. It has been a staple in the pro peloton since 1998, earning wins at major races around the world for more than two decades.
To create the fastest TCR ever, our team established a nearly impossible goal: Make it even more efficient. To do that, we focused on three key performance factors: class-leading efficiency, advanced aerodynamics and total control. We analyzed every aspect of the bike, from raw materials to all-new manufacturing processes.
In the end, after several years of research, design and development, the new TCR has proven to be significantly more aerodynamic than the previous generation while retaining its best-in-class stiffness-to-weight ratio. Every tube shape has been modified to reduce drag without adding a single gram or compromising the qualities that have made TCR a leading pro-level race bike for two decades. Read on to learn about all the engineering, aerodynamic development and technical details that make this the fastest TCR ever.

DEVELOPING THE TOTAL RACE BIKE

Every bike in the 2021 TCR range was designed and engineered with the following three performance factors in mind.
CLASS LEADING EFFICIENCY
Adding aerodynamic elements to a bicycle usually means adding more weight. To achieve the goal of maintaining the best-in-class stiffness-to-weight ratio, it was essential to minimise weight wherever possible to make up for the added mass in the areas of the frame that were modified for aerodynamic improvements. This task was achieved in part by using four new state-of-the-art production processes:
Giant TCR 2021 - Roe Valley Cycles

CUTTING-EDGE COMPOSITE MATERIAL

All-new Professional Grade raw carbon material is woven in Giant’s own composite factory to produce an even lighter, stiffer frameset than the previous generation. This material also uses Carbon Nanotube Technology resin to improve impact resistance.

Giant TCR 2021 - Roe Valley Cycles

LASER CUTTING

Whereas previous generations of TCR frames relied on machine-stamped composite swatches, new laser technology is now used to produce ultra-precise cuts. This translates into smaller, more exacting swatches, which results in lighter overall weight of the finished structure.

Giant TCR 2021 - Roe Valley Cycles

ADVANCED ROBOTIC LAYUP ASSEMBLY

Giant Manufacturing invested in a new robotic assembly process for the critically weight conscious areas of the frame and fork. Ultra-precise placement of 150 smaller, individual composite swatches results in lighter overall frame and fork weights.

Giant TCR 2021 - Roe Valley Cycles

FINISHING TECH

Our new ThinLine paint process on the TCR Advanced SL 0 Disc uses a minimum quantity of paint to save up to 50 grams compared to a traditional seven-layer paint application. In addition, a proprietary 3M adhesive protector is used to reinforce the integrated seatpost (ISP) when the saddle clamp is installed, saving more weight without sacrificing security.

ADVANCED AERODYNAMICS
The final frontier of race bike performance is the quest for improved aerodynamics. While weight and stiffness still play an integral role in overall performance minimizing aerodynamic drag remains the single greatest opportunity for real-world gains. Giant’s engineering team combined Computational Fluid Dynamics (CFD) and wind-tunnel testing to create shapes that function best as a complete system for superior aerodynamic performance. Central to this process is the belief that any product must perform as well on the road as it does in the wind tunnel.
Giant TCR 2021 - Roe Valley Cycles

TRUNCATED ELLIPSE TUBING

To engineer the new TCR Advanced SL frameset, we created new airfoil sections using truncated ellipse tubing to consistently produce lower drag coefficients at a wider range of yaw angles compared to traditional “teardrop” tubing. To ensure that the new TCR performs well in real-world conditions, we designed the aerodynamic flow around both the downtube and seattube equipped with standard, 22-ounce water bottles. From there, we refined the entire system including frame, fork, cockpit and WheelSystem at the GST wind tunnel in Immenstaad, Germany.

Giant TCR 2021 - Roe Valley Cycles

COMPONENTS INTEGRATION

We learned from developing the Propel Advanced SL aero road bike that clean integration of disc brakes reduces drag compared to traditional caliper brakes. The same applies to the new TCR Advanced SL Disc. The location of traditional calipers (either in front or behind the fork crown/legs) creates “dirty” air. Opening up the fork crown area by placing the disc-brake calipers down at the hub means that the air hitting the caliper has already been disrupted by the leading edge of the tire/wheel. This effect is further enhanced by the TCR’s new symmetric fork that helps smooth out airflow over the caliper. Beyond the frame and fork, we also created a new “aero-influenced” Contact SLR handlebar with modified cable routing to provide a smart balance between aerodynamics, rider ergonomics and user-friendly maintenance.

TOTAL CONTROL
With its fully integrated disc-brake technology, the new TCR Advanced SL Disc delivers superior braking power and greater modulation in wet or dry conditions. This was a critical demand from our pro road racers, who typically race for hours over varied terrain that includes high-speed descents and cornering.
Giant TCR 2021 - Roe Valley Cycles

DISC BRAKE INTEGRATION

The new frame is engineered with updated flat-mount disc brake technology for consistent braking power in all conditions. Front (12x100mm) and rear (12x142mm) thru-axle setups produce unrivaled steering precision and stiffness while saving weight.

NEW FORK DESIGN

To boost steering stiffness, our engineers completely redesigned the fork, from the thru-axle up to the crown, to provide up to 35 percent greater torsional stiffness and improve the aerodynamic flow of air over the non-driveside caliper—without adding any weight compared to the fork on the previous generation TCR. Frame and fork clearance have also been increased on all new TCR models. Riders can now choose high-volume tires up to 32mm* for better cornering grip, rolling efficiency and handling on rougher roads. *on disc-brake models

Giant TCR 2021 - Roe Valley Cycles

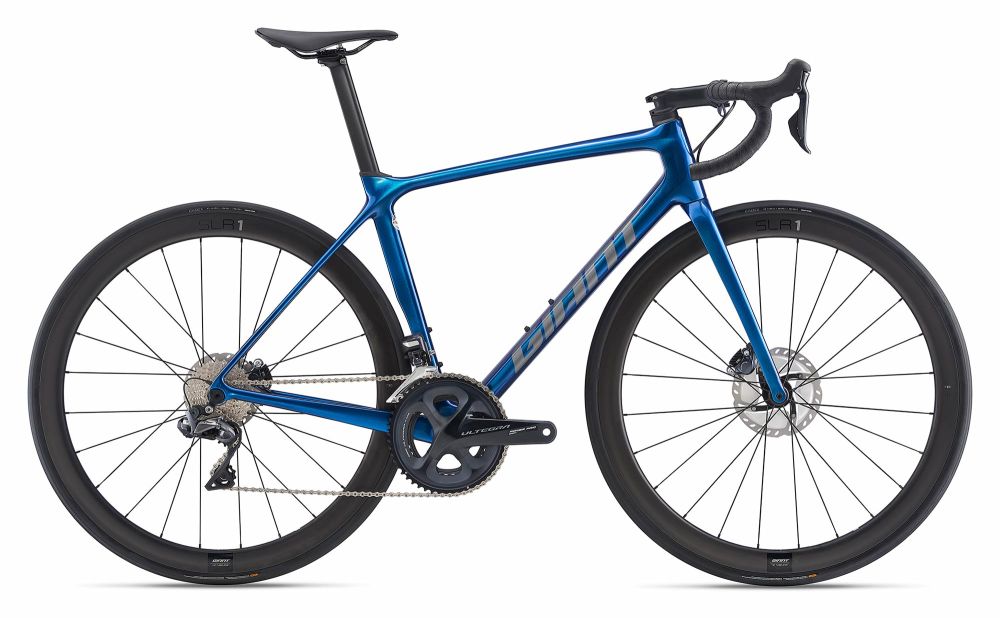

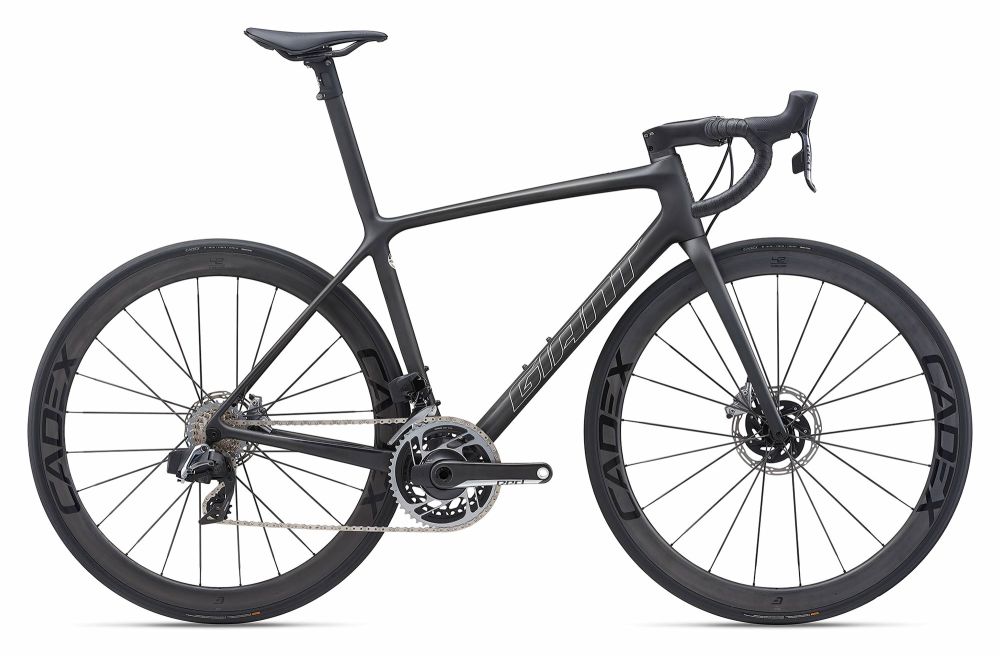

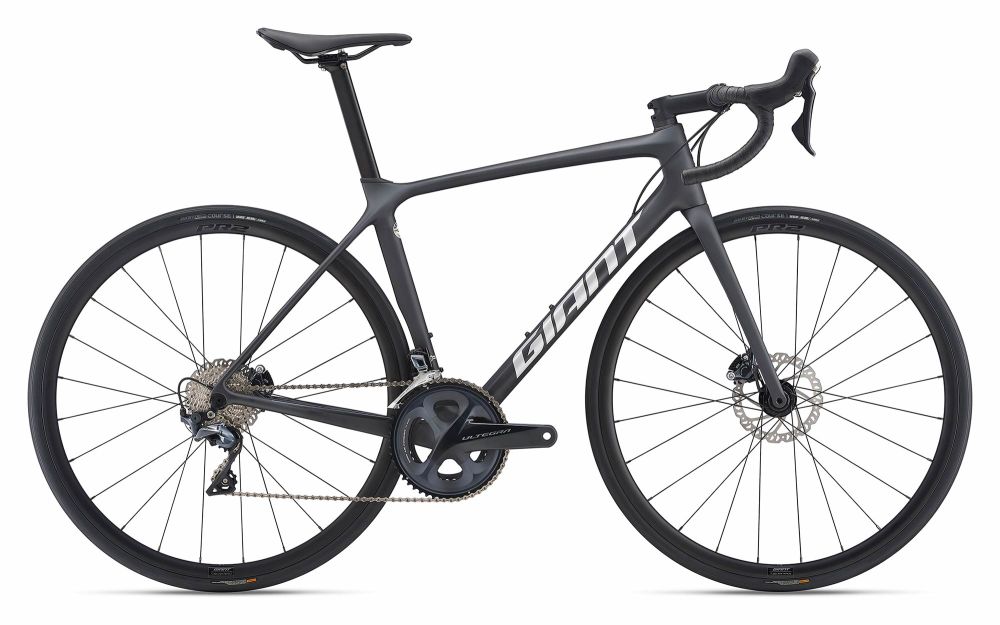

DISC BRAKE RANGE

RIM BRAKE RANGE
